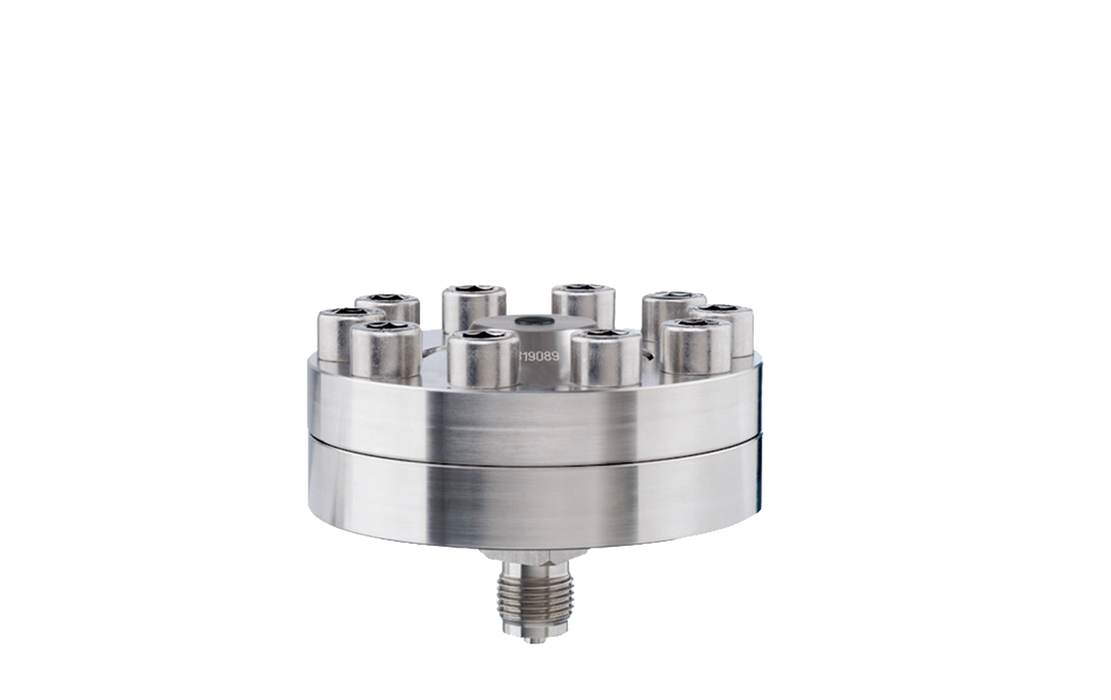

Armano Diaphragm|Chemical seal MDM 7211
SKU MDM 7211
Options:
Availability:
in stock, call for availability
To order, contact us online, chat, or call (780) 463-9527
Monday-Thursday 730am-430pm; Friday 7am-4pm.
The three part construction (attachment flange, upper- and lower
part) allows a combination of different materials and a selection of
various process connections (male thread or flange connections), so
that a wide range of application is given. The diaphragm is welded
to the upper part.
Bourdon tube pressure gauges, pressure switches, pressure
transmitters, pressure transducers and other pressure measuring
instruments can be provided with diaphragm seals of this type series.
| Process connection | G1/2B 1/2 NPT M20x1.5 |
|---|---|
| Nominal diameter DN | 15 25 50 |
| Nominal diameter NPS | 1/2" 3/4" 1" 2" |
| Nominal pressure PN | 250 |
| Nominal pressure Class | 900 1500 |
| Material | 1.4404 / 316L |
| Instrument connection | vd8 vG1/2 female |
| Features | various process connections, threads and flange connections |
| model | MDM 7211 |
|---|---|
| process connection |
1/2" NPT |
| Nominal Diameter DN | 15 25 50 |
| Nominal Diamter NPS | 1/2" 3/4" 1" 2" |
| Nominal Pressure Class | 900 1500 |
| Material | 1.4404 / 316L |
| Instrument Connection | 1/2" NPT female G1/2 female |
| Features | various process connections, threads and flange connections |
